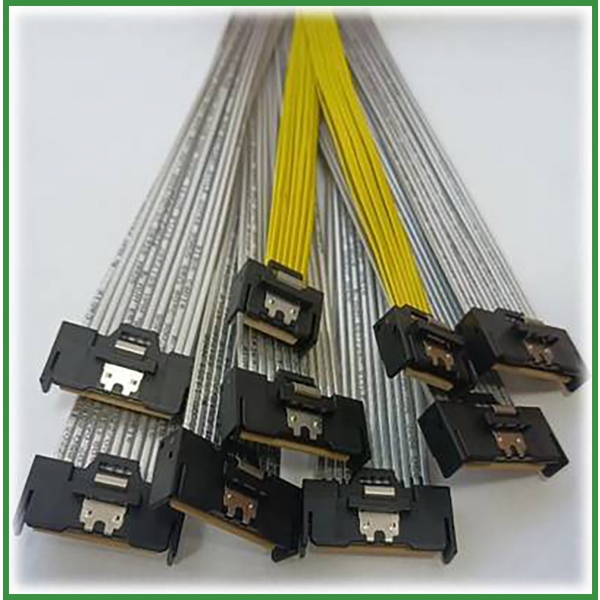

MCIO

MCIO has PAM4 PCIe Gen 5-Mini Cool Edge IO. Compare with traditional cable, which offer longer signal path, and contain good conditional of SI performance.
DETAIL
  • Pitch 0.6mm, 1.57mm PCB card thickness compatible, offer 38 pin, 74 pin, 124 pin, and 148 pin, support PCIe multiple channel.
  • 32G NRZ and 56G / 64G / 112G PAM4.
  • 30~34 AWG
  • Customized for variety PCB side connector and wire.
  • Slim type design for minimized database center case.
  • Fixable and modularize, easy maintain.
  • Decrease system design cost, program and proving fee.
  • SFF-TA-1016 / SI meet PCIe 4.0
  1.  100% inspect of open circle / short circle / alignment / shut down
  2.  Resistance : 2.0 Ω Max.
  3.  Isolation : 10M Ω Min., 300V/10ms.
  4. Difference impendence: Cable 85 +/- 10 Ω  , Connector 85 +/- 15 Ω
  5.  100% inspect of spring function.
  6. Products and process meet RoHS 2.0
